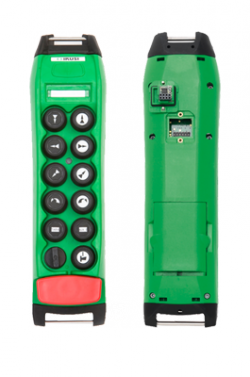

T70 2 ATEX
사용자 맞춤형 방폭 송신기
적용가능한 응용분야들
송신기 특성
- High-sensitivity two-step push button.
- Multiband Radio with Full-Duplex communication.
- Highly customizable.
- External removable EEPROM SIM module.
- Easy and fast maintenance.
- High resistance to impacts.
- Frequency management against interferences.
- Intrinsecally safe.
적용가능한 수신기
상세정보
| 송신기 | T70 2 ATEX |
|---|---|
| Stop Function | Cat. 3 - PLd |
| Ingress Protection | IP65/NEMA4 |
| Anti condensation system | na |
| Frequency Band | Multiband (400 - 930 MHz) |
| Main Mechanisms (Max. #) | Pushbutton (10) |
| Auxiliary Mechanisms | Toggle & Rotary switches |
| Removable EEPROM | External |
| Battery Model | BT06K-ATEX |
| Battery Life | 8h |
| Operating Temperature Range | -20C +70C (-4F +158F) |
| Weight (with Battery) Grams | 600 |
| Harness | Hand Strap / Shoulder Strap |
| Display | na |
| Cable Connection | na |
| Range Limiter | na |
| Associated Receivers | R13/R13ATEXZ2/R70/R70ATEXZ1/MP08/MP20 |
한국가스안전공사
ATEX / IECEx
II 2 GD- Ex ia IIC T4 Gb
- Ex ia IIIC T135℃ Db
- CE0080
- INERIS 08ATEX0006
- IECEx INE 09.0014
CSA / UL
- Class I, Division 1, Groups A,B,C & D
- Class II, Division 1, Groups E,F & G
- Zone 21, AEx iaD T135℃ T4 IP65
